No matter how aggressive the design or how premium the finish, a wheel simply will not mount properly if the bolt pattern does not match your vehicle’s hub.
Understanding bolt pattern ensures safe installation, proper load distribution, and long-term reliability. At Canada Custom Autoworks, we regularly help drivers avoid costly fitment mistakes by confirming bolt pattern, offset, hub bore, and overall compatibility before purchase.
What does a bolt pattern actually mean?
A bolt pattern (also called lug pattern or PCD – pitch circle diameter) describes two key measurements:
- The number of lug holes
- The diameter of the circle that those lug holes form
For example:
- 5x114.3 means 5 lug holes arranged in a 114.3 mm diameter circle
- 6x139.7 means 6 lug holes arranged in a 139.7 mm diameter circle
Both numbers must match your vehicle exactly. Even a small difference (for example, 5x114.3 vs 5x120) makes the wheel incompatible.
How to find your bolt pattern?
There are several reliable ways to determine your correct bolt pattern:
Check your owner’s manual
Manufacturers list factory wheel specifications, including bolt pattern.
Measure it manually
If you have an even number of lugs (4, 6, 8):
Measure from the center of one lug hole straight across to the center of the opposite hole.
If you have an odd number of lugs (5):
Measure from the center of one lug hole to the outer edge of the lug hole directly across.
Ask a fitment specialist
The safest method is to confirm through a professional fitment check. Bolt pattern alone isn’t enough offset, wheel width, brake clearance, and hub bore all matter.
At Canada Custom Autoworks, we verify all these measurements before recommending wheels.
Why does bolt pattern accuracy matter?
Incorrect bolt pattern fitment can cause:
- Improper torque distribution
- Vibration at highway speeds
- Stud damage or premature wear
- Unsafe driving conditions
Adapters do exist, but they introduce complexity and should only be used when professionally approved.
Proper bolt-on fitment is always the safest and cleanest solution.
Popular American racing wheels and bolt pattern options
Many modern performance and truck wheels are available in multiple bolt patterns to fit domestic trucks, SUVs, and performance cars. Below are several popular American Racing models available through Canada Custom Autoworks.
American Racing AR889 Dagger Wheels
Link: https://www.canadacustomautoworks.com/brands/wheels/american-racing/ar889-dagger
The AR889 Dagger delivers a bold split-spoke design with aggressive styling ideal for trucks and performance SUVs. Available in multiple bolt patterns, it combines strength and street presence while maintaining proper hub-centric compatibility.
American Racing AR890 Wheels
Link: https://www.canadacustomautoworks.com/brands/wheels/american-racing/ar890
The AR890 features a modern multi-spoke layout engineered for both durability and clean aesthetics. Offered in common 5-lug and 6-lug configurations, it’s designed to accommodate popular domestic applications.
American Racing AR893 Mainline Wheels
Link: https://www.canadacustomautoworks.com/brands/wheels/american-racing/ar893-mainline
The AR893 Mainline balances performance styling with structural integrity. Its availability across multiple bolt patterns makes it a versatile choice for cars and light trucks requiring precise fitment.
American Racing AR897 Wheels
Link: https://www.canadacustomautoworks.com/brands/wheels/american-racing/ar897
The AR897 offers a bold, concave profile engineered for aggressive stance builds. Multiple bolt pattern options ensure compatibility across a range of truck and SUV platforms.

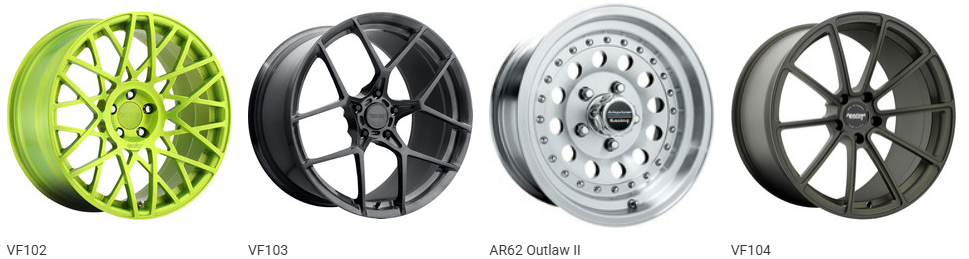

American Racing VF102 Wheels
Link: https://www.canadacustomautoworks.com/brands/wheels/american-racing/vf102
The VF102 is a forged-style performance wheel built for strength-to-weight efficiency. Designed with precision machining and offered in several bolt patterns, it’s a strong option for high-performance street builds.
American Racing VF492 Wheels
Link: https://www.canadacustomautoworks.com/brands/wheels/american-racing/vf492
The VF492 delivers lightweight construction and clean motorsport-inspired styling. Available in multiple fitment configurations, it’s engineered to meet the demands of modern performance vehicles.
Before selecting any of these models, confirming the bolt pattern is essential to ensure proper mounting and safe operation.
Beyond bolt pattern
Even if your bolt pattern matches, you must also consider:
- Wheel width
- Offset
- Backspacing
- Center bore
- Brake clearance
- Suspension setup
- Tire size
A wheel can share the correct bolt pattern yet still rub, sit too far inward, or extend too aggressively beyond the fender if other specifications are incorrect.
Professional fitment consultation prevents these issues.
Get your bolt pattern confirmed the right way
If you’re asking, “What is my bolt pattern?” the smartest next step is verification before purchase.
At Canada Custom Autoworks, our specialists:
- Confirm bolt pattern by year, make, and model
- Check offset and width compatibility
- Recommend wheel and tire packages that fit correctly
- Ensure safe installation and torque specifications
Whether you’re upgrading to American Racing wheels or building a full custom setup, we make sure everything fits exactly as it should.
Contact Canada Custom Autoworks today to confirm your bolt pattern and build your perfect wheel-and-tire package with confidence.
