Wheel Offset Explained: Will Your Wheels Fit?

Blog Post

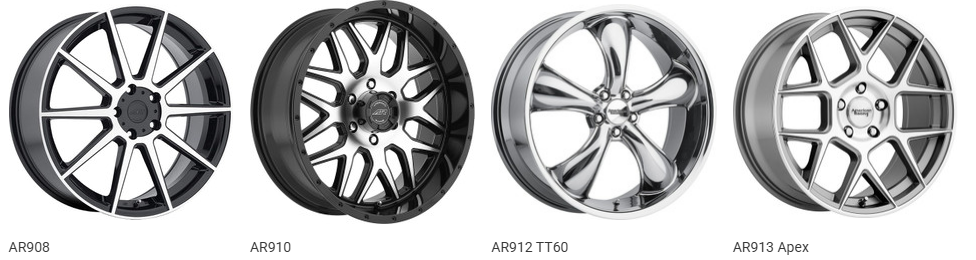

Choosing aftermarket wheels is more than selecting a design. The question: Will this wheeloffset fit my vehicle properly? At Canada Custom Autoworks, we evaluate wheel width, offset, bolt pattern, hub bore, brake clearance, suspension height, and tire size before approving any setup. Below is a detailed breakdown of several popular configurations and what you should expect in terms of fitment. Truck wheel with visible offset measurement showing how wheel offset affects fitment and clearance on a pickup truck.

Armed off-road carnage gloss black milled w/ armed writing 20×12 -4

Specifications:
  • Size: 20×12
  • Bolt Patterns: 8×165.1 / 8×180
  • Offset: -44
  • Hub Bore: 125.1

What does this mean for fitment?

A 20×12 wheel with -44 offset is an aggressive, deep-lip setup designed primarily for heavy-duty trucks. The -44 offset pushes the wheel significantly outward, creating substantial “poke.” Typical Fitment Requirements:
  • 4”–6” suspension lift recommended
  • Fender trimming or wide fender flares are often required
  • Not suitable for stock-height trucks
  • Common pairing with 33”, 35”, or larger tires
Best suited for 3/4-ton and 1-ton applications with proper lift and clearance modifications.

Replica gm04 22×9 6×139.7 +24 gloss black

Specifications:
  • Size: 22×9
  • Bolt Pattern: 6×139.7
  • Offset: +24
  • Hub Bore: 78.1

What does this mean for fitment?

A 22×9 +24 offset is a conservative, near-OEM style configuration. Positive offset pulls the wheel inward, keeping it close to factory geometry. Typical Fitment Characteristics:
  • Works well on stock suspension
  • Minimal poke; clean flush stance
  • Ideal for highway and daily driving
  • Usually, no trimming is required
This is a popular upgrade for half-ton trucks running factory ride height who want a larger diameter wheel without aggressive stance complications.

Armed off-road carnage gloss black w/ armed writing 22×12 -44

Specifications:
  • Size: 22×12
  • Bolt Patterns: 5×127 / 5×139.7
  • Offset: -44
  • Hub Bore: 78.1
Aftermarket truck wheel showing offset measurement and how wheel offset affects tire clearance and fender fitment.

What does this mean for fitment?

This is an extremely aggressive setup. A 22×12 -44 extends far beyond factory fender lines on most half-ton trucks. Fitment Requirements:
  • 4”–6” lift strongly recommended
  • Fender trimming or aftermarket flares are likely
  • Alignment adjustments required
  • Increased stress on wheel bearings over time
Ideal for show builds or lifted trucks aiming for a wide, commanding stance. Not recommended for stock-height suspension.

Will these wheeloffset fit my?

Selecting the right wheels goes beyond style offset, width, bolt pattern, and hub bore all determine whether a setup will properly clear your suspension, brakes, and fenders. Below is a quick-reference comparison of several popular Armed Off-Road and Replica configurations available at Canada Custom Autoworks. This table can help you understand which setups are aggressive lift-required builds and which are more suitable for stock or leveled trucks.

Popular wheel options & specifications


Model Size / Offset Fitment Summary Link
Armed Off-Road Carnage Gloss Black Milled w/ Armed Writing 20×12 -44 Extreme stance. 4”–6” lift required. Significant poke. https://www.canadacustomautoworks.com/armed-off-road-carnage-gloss-black-milled-w-armed-writing-20×12-8×165.1-8×180-neg44-a153-2012-36-152
Replica GM04 Gloss Black 22×9 +24 Near-OEM fit. Works well on stock suspension. https://www.canadacustomautoworks.com/replica-gm04-gloss-black-22×9-6×139.7-24-78.1-d101-2290-33-177
Armed Off-Road Carnage Gloss Black w/ Armed Writing 22×12 -44 Very aggressive. Lift and trimming required. https://www.canadacustomautoworks.com/armed-off-road-carnage-gloss-black-w-armed-writing-22×12-5×127-5×139.7-neg44-78.1-a152-2212-26-149
Armed Off-Road Infantry Satin Black w/ Milled Dots 22×10 -18 Moderate aggressive stance. Best with leveling kit. https://www.canadacustomautoworks.com/armed-off-road-infantry-satin-black-w-milled-dots-22×10-5×127-5×139.7-neg18-78.1-a214-2210-26-164
Armed Off-Road Force Gloss Black Milled 20×9 0 Slightly wider than stock. Fits many stock trucks. https://www.canadacustomautoworks.com/armed-off-road-force-gloss-black-milled-20×9-6×135-6×139.7-0-108.1-a173-2090-32-138

Armed off-road infantry satin black w/ milled dots 22×10 -18

Specifications:
  • Size: 22×10
  • Bolt Patterns: 5×127 / 5×139.7
  • Offset: -18
  • Hub Bore: 78.1

What does this mean for fitment?

A 22×10 -18 offers a balanced, aggressive stance without going extreme. Typical Fitment:
  • Works well with leveling kit (2”–2.5”)
  • Mild poke beyond the fender
  • May require minor liner trimming depending on tire size
  • Good compromise between show stance and drivability
This is a strong option for drivers who want noticeable width without committing to a full suspension lift. Aftermarket truck wheel showing offset measurement used to determine proper wheel and tire fitment.

Armed off-road force gloss black milled 20×9 0 offset

Specifications:
  • Size: 20×9
  • Bolt Patterns: 6×135 / 6×139.7
  • Offset: 0
  • Hub Bore: 108.1

What does this mean for fitment?

A 20×9 with 0 offset sits slightly more outward than factory positive offsets but remains very manageable. Typical Fitment:
  • Compatible with stock suspension in many applications
  • Slightly wider stance than OEM
  • Excellent for 33” tire setups
  • Minimal rubbing when properly sized
This is one of the most versatile configurations for half-ton trucks seeking a subtle upgrade without aggressive modification.

Key factors that determine whether it will fit

Before choosing any wheel, we evaluate:
  • Current wheel width and offset
  • Tire size (true measured diameter and section width)
  • Suspension height (stock, leveled, lifted)
  • Brake caliper clearance
  • Fender and liner space
  • Intended use (daily driving, towing, off-road, show build)
Offset alone does not determine fitment. A 0 offset on a 9-inch wheel behaves very differently from -44 on a 12-inch wheel. Width changes inner and outer clearance dramatically. Pickup truck wheel with aftermarket rim showing offset measurement used to determine wheel and tire clearance.

Get professional fitment advice before ordering

Aggressive offsets can transform the look of your truck, but incorrect fitment can lead to rubbing, premature bearing wear, steering geometry issues, and expensive corrections. At Canada Custom Autoworks, we provide precise fitment recommendations tailored to your exact truck, suspension setup, and driving goals. Before purchasing, contact our specialists or visit us in-store to ensure your new wheels deliver the perfect combination of stance, clearance, and performance.
